Pipe thimble With welded plate

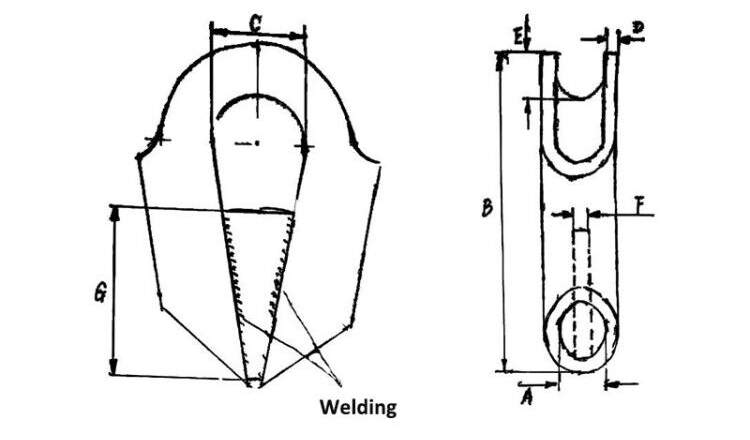

Specification
| size mm |
A | B | C | D | E | F | G | KG/PC |
| G212 | 12 | 90 | 23 | 4 | 8 | 6 | 40 | 0.25 |
| G215 | 15 | 105 | 27 | 5 | 10 | 6 | 45 | 0.45 |
| G217 | 17 | 115 | 27 | 4 | 10 | 6 | 51 | 0.45 |
| G219 | 20 | 120 | 32 | 5 | 12 | 6 | 52 | 0.65 |
| G222 | 22 | 140 | 35 | 5 | 15 | 6 | 60 | 0.75 |
| G225 | 26 | 180 | 45 | 6 | 16 | 6 | 80 | 1.45 |
| G228 | 28 | 180 | 45 | 7 | 16 | 6 | 80 | 1.75 |
| G230 | 30 | 195 | 47 | 7 | 18 | 6 | 85 | 2.15 |
| G235 | 35 | 215 | 60 | 7 | 22 | 6 | 95 | 2.55 |
| G240 | 40 | 240 | 65 | 7 | 24 | 8 | 105 | 3.2 |
| G245 | 45 | 260 | 70 | 7 | 27 | 8 | 113 | 3.9 |
| G250 | 49 | 280 | 75 | 7 | 28 | 8 | 123 | 4.5 |
| G255 | 55 | 298 | 85 | 7 | 32 | 8 | 130 | 5.6 |
| G260 | 59 | 300 | 87 | 7 | 34 | 8 | 130 | 5.9 |
| G265 | 65 | 312 | 88 | 7 | 35 | 8 | 135 | 7 |
| G270 | 69 | 332 | 90 | 7 | 38 | 8 | 144 | 7.4 |
| G275 | 75 | 342 | 93 | 7 | 42 | 8 | 147 | 8 |
| G285 | 88 | 450 | 130 | 10 | 50 | 10 | 195 | 18.5 |
