Trawling chain shackle
Specification

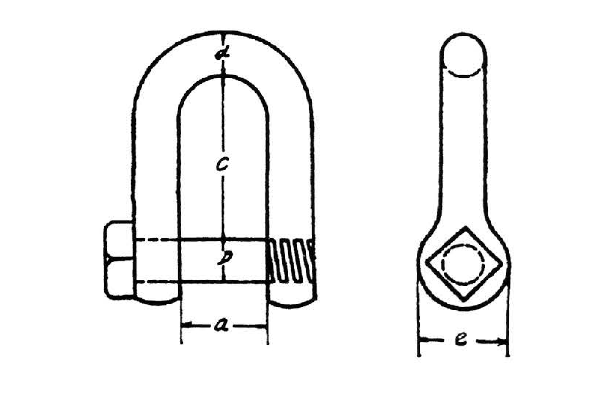

| Size inch | Dimensions(in.) | SWL tons | Weight Per 100 pcs kgs | ||||
| D mm | d mm | a mm | c mm | e mm | |||
| 5/16 | 8 | 8 | 16 | 32 | 18 | 0.20 | 7.00 |
| 3/8 | 10 | 10 | 20 | 38 | 20 | 0.30 | 13.40 |
| 1/2 | 12 | 12 | 25 | 51 | 26 | 0.50 | 25.00 |
| 5/8 | 16 | 16 | 32 | 63 | 33 | 0.80 | 53.00 |
| 3/4 | 20 | 20 | 38 | 76 | 40 | 1.10 | 92.00 |
| 7/8 | 22 | 22 | 45 | 88 | 50 | 1.50 | 140.00 |
| 1 | 25 | 25 | 51 | 102 | 57 | 2.00 | 215.00 |
| 1 1/8 | 28 | 28 | 57 | 114 | 68 | 2.60 | 300.00 |
| 1 1/4 | 32 | 32 | 63 | 127 | 73 | 3.80 | 455.00 |
| 1 1/2 | 38 | 38 | 76 | 152 | 85 | 4.50 | 760.00 |
