Screw pin anchor shackle

Screw pin anchor shackle

Specification

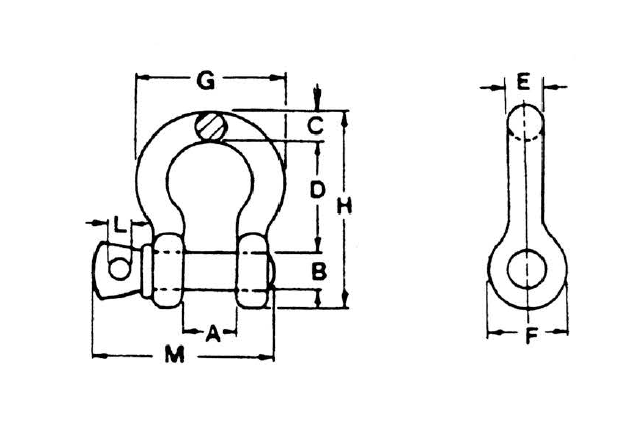

Nominal  Size             (in.) Working Load  Limit    (tons) Weight Each  (lbs) Dimensions(in)
A B C D E F G H M
3/16 1/3 0.50 0.38 0.25 0.19 0.88 0.19 0.56 0.98 1.47 1.12
1/4 1/2 0.12 0.47 0.31 0.25 1.13 0.25 0.61 1.28 1.84 1.38
5/16 3/4 0.19 0.53 0.38 0.31 1.22 0.31 0.75 1.47 2.09 1.66
3/8 1 0.31 0.66 0.44 0.38 1.44 0.38 0.91 1.78 2.49 2.03
7/16 1 1/2 0.38 0.75 0.50 0.44 1.69 0.44 1.06 2.03 2.91 2.38
1/2 2 0.63 0.81 0.63 0.50 1.88 0.50 1.19 2.31 3.28 2.69
5/8 3 1/4 1.38 1.06 0.75 0.69 2.38 0.63 1.50 2.94 4.19 3.34
3/4 4 3/4 2.25 1.25 0.88 0.81 2.81 0.75 1.81 3.50 4.97 3.97
7/8 6 1/2 3.38 1.44 1.00 0.97 3.31 0.83 2.09 4.03 5.83 4.50
1 8 1/2 5.32 1.69 1.13 1.06 3.75 1.00 2.38 4.69 6.56 5.07
1 1/8 9 1/2 6.81 1.81 1.25 1.25 4.25 1.16 2.69 5.16 7.47 5.59
1 1/4 12 9.50 2.03 1.38 1.38 4.69 1.29 3.00 5.75 8.25 6.16
1 3/8 13 1/2 13.25 2.25 1.50 1.50 5.25 1.42 3.31 6.38 9.16 6.84
1 1/2 17 17.20 2.38 1.63 1.62 5.75 1.54 3.63 6.88 10.00 7.35
1 3/4 25 30.38 2.88 2.00 2.25 7.00 1.84 4.19 8.86 12.34 9.09
2 35 45.00 3.25 2.25 2.40 7.75 2.08 4.81 9.97 13.68 10.34
2 1/2 55 　 4.13 2.75 3.13 10.50 2.71 5.69 12.87 17.84 13.00
