Screw pin chain shackle

Screw pin chain shackle

Specification

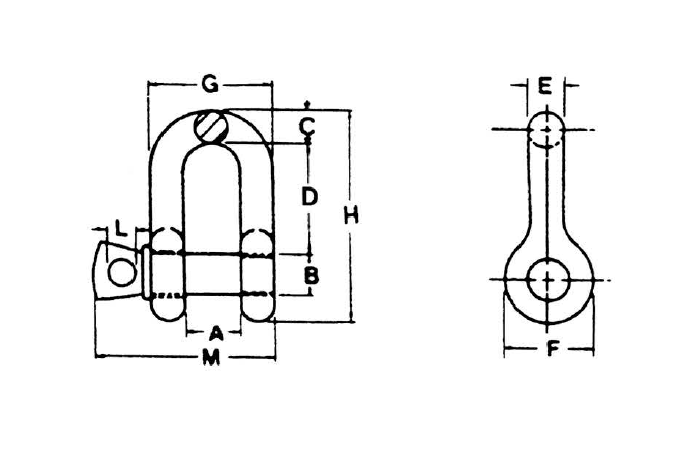

Nominal  Size             (in.) Working Load  Limit    (tons) Weight Each  (lbs) Dimensions(in)
A B C D E F G H M
1/4 1/2 0.11 0.47 0.31 0.25 0.88 0.25 0.61 0.97 1.59 1.38
5/16 3/4 0.17 0.53 0.38 0.31 1.03 0.31 0.75 1.16 1.91 1.66
3/8 1 0.24 0.66 0.44 0.38 1.25 0.38 0.91 1.41 2.30 2.03
7/16 1 1/2 0.40 0.75 0.50 0.44 1.44 0.44 1.06 1.63 2.66 2.38
1/2 2 0.59 0.81 0.63 0.50 1.63 0.50 1.19 1.81 3.03 2.69
5/8 3 1/4 1.21 1.06 0.75 0.62 2.00 0.63 1.50 2.31 3.75 3.34
3/4 4 3/4 2.25 1.25 0.88 0.81 2.38 0.75 1.81 2.75 4.53 3.97
7/8 6 1/2 3.16 1.44 1.00 0.97 2.81 0.83 2.09 3.19 5.33 4.50
1 8 1/2 4.75 1.69 1.13 1.00 3.19 1.00 2.38 3.69 5.94 5.07
1 1/8 9 1/2 6.75 1.81 1.25 1.25 3.58 1.13 2.69 4.06 6.78 5.59
1 1/4 12 9.06 2.03 1.38 1.38 3.94 1.25 3.00 4.53 7.50 6.16
1 3/8 13 1/2 11.63 2.25 1.50 1.50 4.38 1.38 3.31 5.00 8.28 6.84
1 1/2 17 15.95 2.38 1.63 1.62 4.81 1.50 3.62 5.38 9.06 7.35
1 3/4 25 26.75 2.88 2.00 2.12 5.75 1.75 4.19 6.38 10.97 9.08
2 35 42.31 3.25 2.25 2.00 6.75 2.00 4.81 7.25 12.28 10.34
